LAKHOVSKY MULTI-WAVE OSCILLATOR V-TYPE QUENCHED SPARK GAP REPLICA

Dimensions
180 x 100 x 60mm (L x W x H)

Dimensions including fan, grounding terminals, booster capacitor and adjustment shaft
180 x380 x60 mm (L x W x H)

Electrode diameter and length
⌀3 mm x 50 mm

Weight
2.5 kg

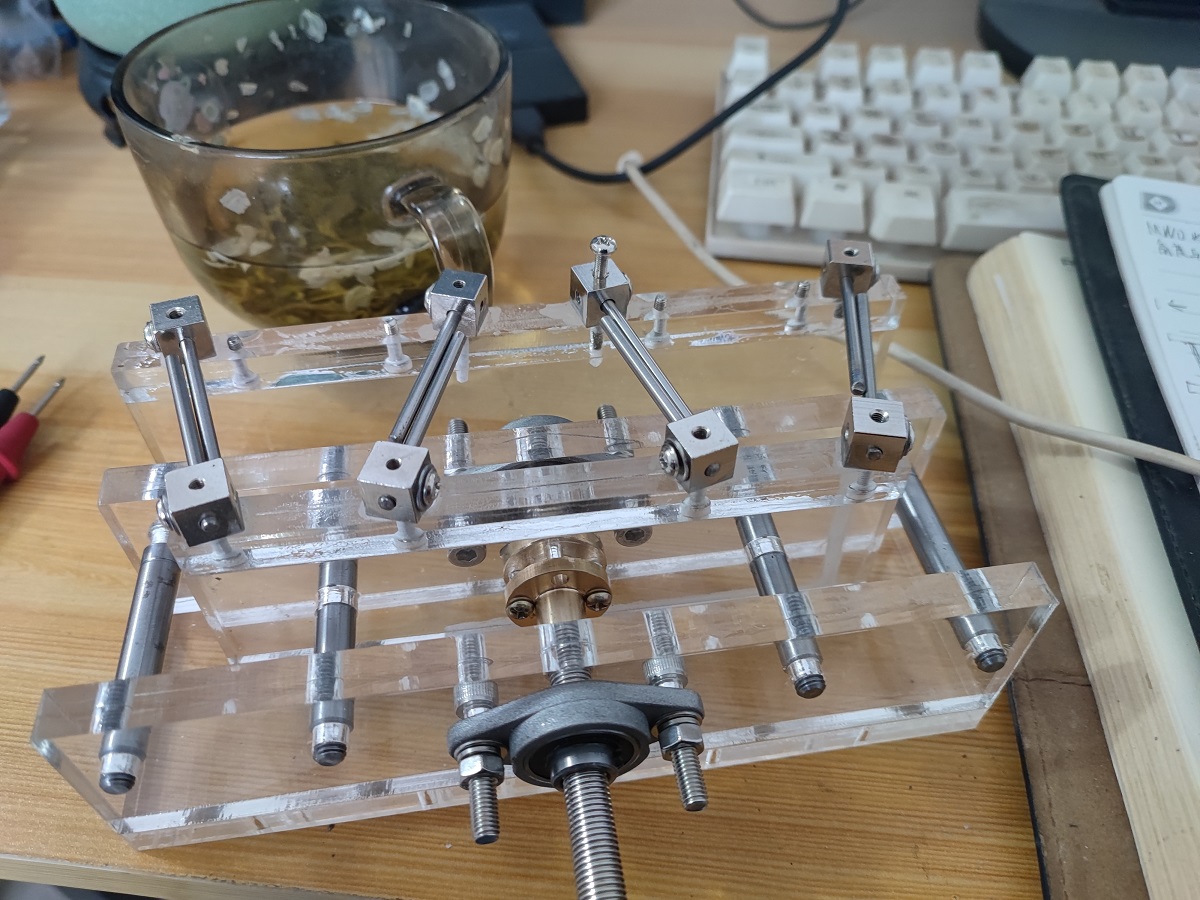

V-type spark gap for multiwave oscillators
Characteristics: Tungsten lanthanum alloy electrode
18 ° electrode inclination angle, adjustable electrode spacing from about 0.5mm to 3.5mm
The screw has a diameter of 8 mm, a length of approximately 350 mm, and a lead of 1 mm. Each rotation increases the spark gap spacing by approximately 0.3 mm.
