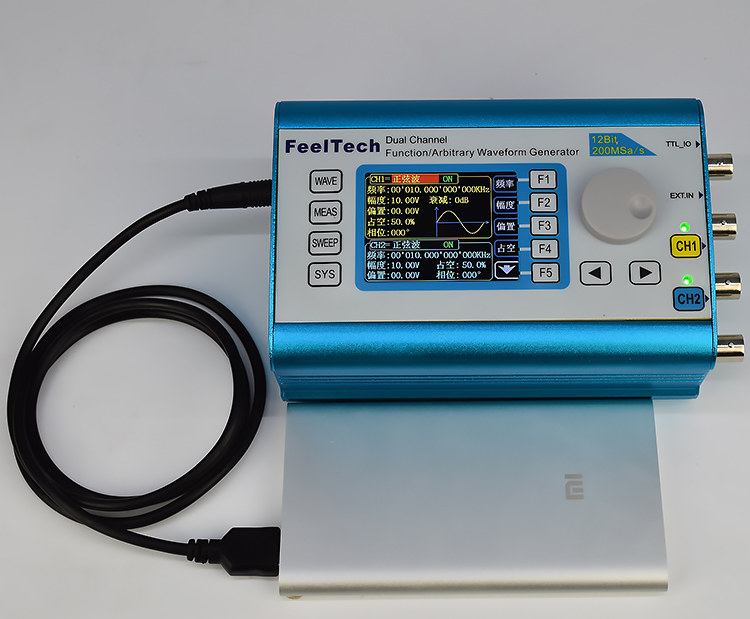

we provide the latest signal generator FY6300 from feeltech company is 15Mhz / 20Mhz / 30Mhz / 40Mhz / 50Mhz. they are better than FY2300.The prices are $ 120 / $ 130 / $ 150 / $ 170 / $ 190.If you need FY2300, it’s $ 5 less than FY6300
The main differences between FY6300 and FY2300 series are as follows:
1. The output frequency of FY6300 series sine wave can reach 60MHz (FY6300-60M), and the maximum output frequency of square wave can reach 25MHz. Parameters Table.
2. Added AM, FM, PM, ASK, FSK, PSK, VCO modulation functions!
3. The sampling rate of FY6300 series is upgraded to 250MSa / s, and the outline of high-frequency signal output is clearer;
4. The FY6300 series uses 14-bit high-speed DA integrated circuits (the performance far exceeds the DA solution made by the resistor network). At 5V output, the waveform ladder is as low as 0.3mV;
5. The FY6300 series waveform storage depth is upgraded to 8192 * 14bits, which can restore the signal details with high accuracy;
6.The phase resolution of FY6300 series can reach 0.01 degree, users can control the delay of two signals more accurately;
7, FY6300 series duty cycle adjustment accuracy can reach 0.01%; square wave rising edge and falling edge time can be adjusted. When the instrument is setting square wave output, press F4 button to switch between duty cycle and rising edge time , So that the scope of application of the instrument is wider!
8. The FY6300 series adopts a new power supply design scheme, which eliminates the disadvantages of small-amplitude signals interfered by the power supply noise of handheld instruments. (10mV small signal still has perfect signal characteristics)
